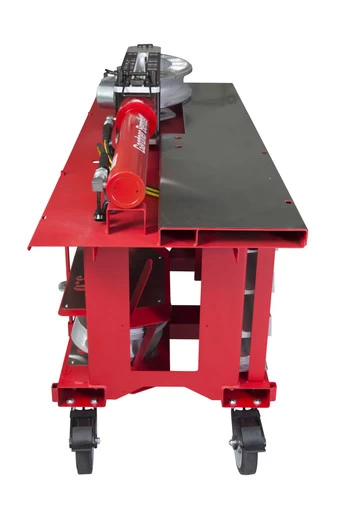

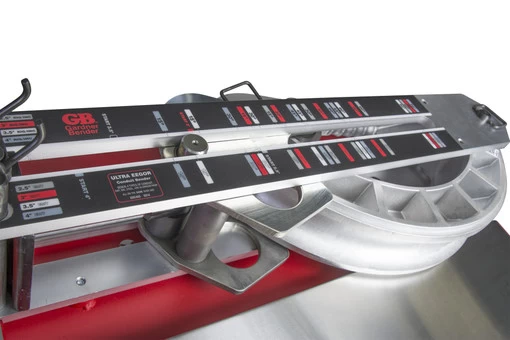

Gardner Bender MB400DL Long Stroke Ultra Eegor Hydraulic Bender, Table And Shoe Group W/o 3.5″

INCLUDES:
• (1) MB400 Bend-Mate Table
• (1) Each Bending Shoe sizes: 2.5 in, 3 in, 4 in
• (1) Each Follow bar size; 2.5 in, 3 in, 4 in
• (1) Each U-strap sizes: 2.5 in, 3 in, 4 in
• (1) U-strap Pin
• (1) Bend Shoe Pin
• (1) 30-Ton Double-Acting Hyd. Cyl
• (2) 10′ Hoses w/High-Flow Coupler
• (1) Double Anchor Frame Pin

FEATURES:
• Integrated components – No Job Box!
• Bends 2.5 inch to 4 inch Rigid, Rigid aluminum, EMT and IMC conduit
• 30 ton 28 inch stroke cylinder is capable of making 90 degree bends in one pass
• Hydraulic power ensures the smoothest bends without deformations to the conduit
• Double -acting cylinder offers rapid retraction regardless of hose lengths and system losses
• Conduit is automatically stripped free from the shoe during the return cycle virtually eliminating extra labor or damaged conduit

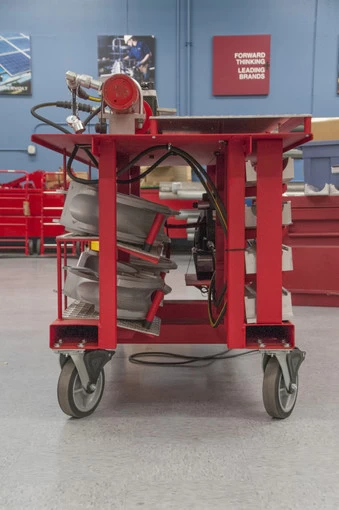

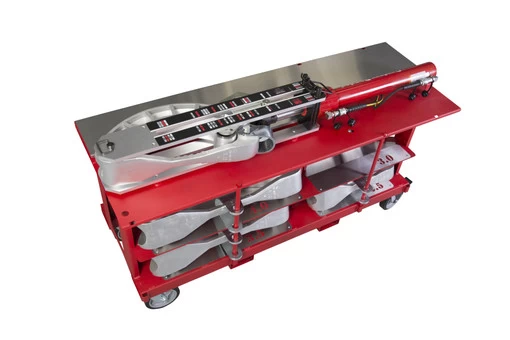

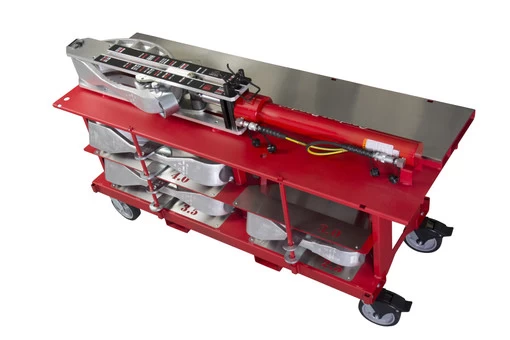

• Onboard storage for all bending shoes, follow bars, pins and hydraulic pump

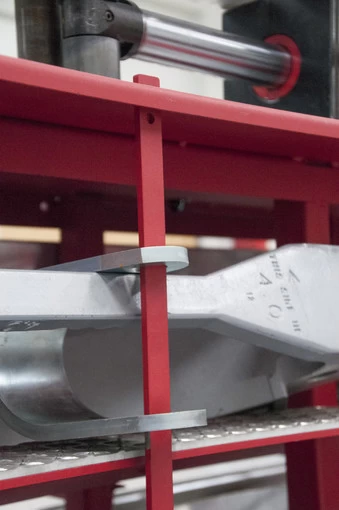

• Security bars protect shoes follow bars, pump and bender for overnight storage on the job site

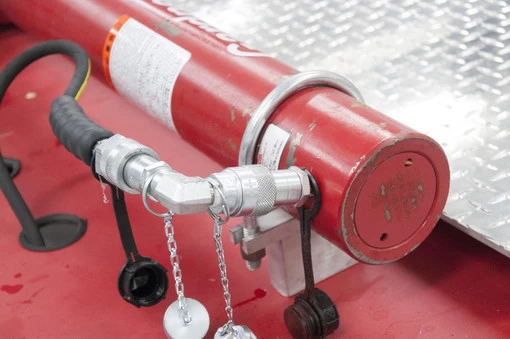

• Protected hose routing
• Ample work/bending area
• Convenient Cylinder support
• Single person set-up
• Fits through 32 in doorway (28 in wide table)
• Forklift pockets on all four sides

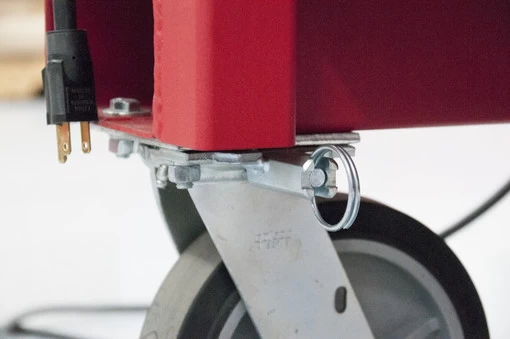

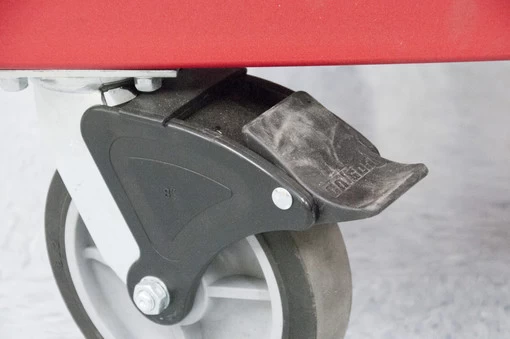

The Mobile Bend-Mate system empowers one person to setup, operate and finish a job faster than ever. All bending shoes, follow bars and U-Straps are integrated into a single unique design – even the hydraulic hoses are pre-installed and routed – to optimize setup and teardown time on the job site. The Long Stroke Ultra Eegor Hydraulic Bender bends 2.5 inch to 4 inch Rigid, Rigid aluminum, EMT and IMC conduit and the 30 ton 28 inch stroke cylinder is capable of making 90 degree bends in one pass. Redesigned bend labels offer easy readability and reference. Hydraulic power ensures the smoothest bends without deformations to the conduit and the double-acting cylinder offers rapid retraction, regardless of hose lengths and system losses. Improved shoes and follow bars reduce conduit kinking during bending. Constant radii follow bars eliminate the need for special calculations and conduit is automatically stripped free from the shoe during the return cycle virtually eliminating extra labor or damaged conduit. When one job is complete, the Mobile Bend-Mate Table moves easily from one location to the next with four heavy duty swivel casters that pivot in any direction and lock securely. The entire system fits just about anywhere sliding through doorways as narrow as 32 inches. Built-in forklift pockets on all four sides provide immediate access for lifting and loading. At the end of the work day, the Mobile Bend-Mate Table’s lockable bars quickly secure shoes, follow bars, pump and bender for overnight storage on-site. MB400L System Includes: Table, Bending shoe sizes: 2.5 in, 3 in, 4 in, Follow bar size; 2.5 in, 3 in, 4 in, U-strap sizes: 2.5 in, 3 in, 4 in , U-strap Pin, Bend Shoe Pin, 30-Ton Double-Acting Hyd. Cyl, 2 – 10′ Hoses w/High-Flow Coupler, and Double Anchor Frame Pin. Proudly made in the USA.
